Design and Compliance Guide
Fire-rated wall assemblies are a fundamental part of modern building safety. They are not just about meeting minimum fire regulations; they are about containing fire, protecting occupants, preserving structural integrity, and ensuring regulatory approval across the building lifecycle.
Fiber cement boards are widely used in fire-rated wall assemblies because they offer non-combustibility, dimensional stability, and predictable performance. This guide explains how fiber cement boards are used in fire-rated wall systems, focusing on design principles, compliance requirements, and best-practice specification.
Why Fiber Cement Boards Are Used in Fire-Rated Walls
Fiber cement boards are cement-based, inorganic materials that do not contribute to fire load. Unlike combustible or heat-sensitive materials, they retain their structural integrity when exposed to high temperatures.
In fire-rated wall assemblies, fiber cement boards support:
- Fire compartmentation
- Flame spread control
- Structural protection of framing
- Compliance with national and European fire standards
Their consistent performance makes them suitable for both internal fire partitions and external wall systems.
Fire Resistance vs Reaction to Fire
Understanding the difference between reaction to fire and fire resistance is critical when designing compliant wall assemblies.
Reaction to fire refers to how a material behaves when exposed to fire, including flame spread and smoke production. Fiber cement boards typically achieve the highest non-combustible classifications, meaning they do not ignite or produce significant smoke.
Fire resistance, on the other hand, measures how long a complete wall assembly can withstand fire exposure while maintaining:
- Structural integrity
- Insulation against heat transfer
- Integrity against flame and hot gases
Fiber cement boards contribute to both aspects but must always be assessed as part of a tested wall system, not as standalone products.

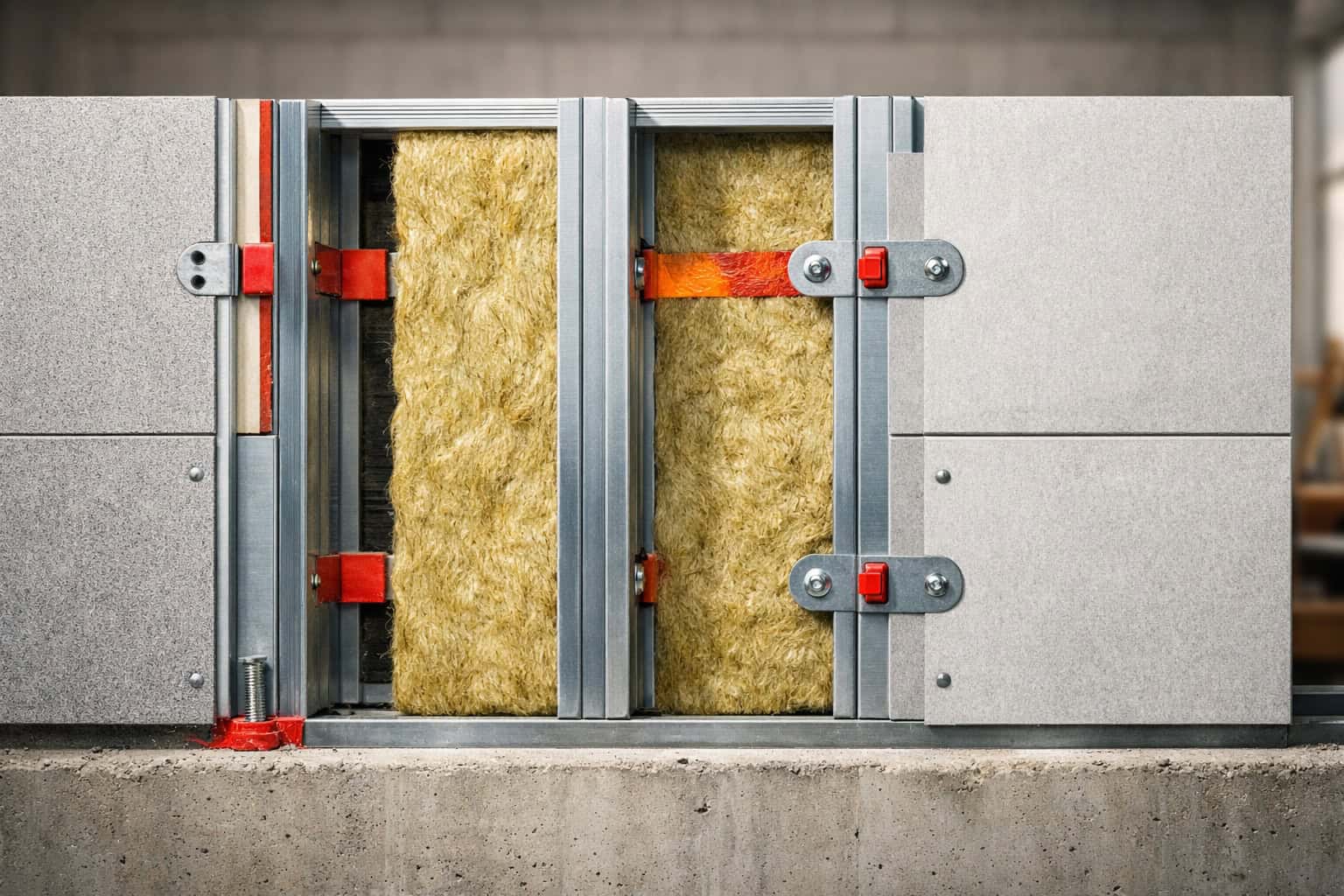

Typical Fire-Rated Wall Assembly Configuration
A fire-rated wall assembly using fiber cement boards generally consists of:
- Steel or timber framing
- Fiber cement boards on one or both sides
- Fire-rated insulation within the cavity
- Fire-rated fixings and joint treatment
- Sealed service penetrations
The fire rating of the wall depends on board thickness, number of layers, framing type, cavity insulation, and installation detailing.
Common Fire Ratings Achieved
When correctly designed and tested, fiber cement board wall assemblies can achieve common fire resistance periods such as:
- 30 minutes
- 60 minutes
- 90 minutes
- 120 minutes
The achievable rating depends on the full system configuration and must be supported by valid fire test reports.
Design Considerations for Fire Compliance
Board Thickness and Layering
Increasing board thickness or using multiple layers significantly improves fire resistance. Double-layer fiber cement configurations are often used where higher fire ratings are required.
Framing Type
Steel framing generally offers more predictable fire performance than timber. However, fiber cement boards can also be used in timber-framed fire-rated walls when supported by tested assemblies.
Fixings and Fasteners
All fixings must be fire-rated and compatible with the board and framing. Fixing spacing, edge distances, and embedment depth directly affect fire performance.
Joint Treatment
Joints are critical weak points in fire-rated walls. Proper joint detailing ensures:
- Integrity against flame penetration
- Controlled thermal movement
- Consistent fire performance across the wall surface
Service Penetrations
Cables, pipes, and ducts must be sealed using approved fire-stopping systems. Unprotected penetrations can invalidate the entire fire rating.
External Wall Assemblies and Fire Safety
Fiber cement boards are increasingly used in external wall systems, particularly where non-combustibility is required.
In external applications, fiber cement boards:
- Do not contribute to external fire spread
- Maintain performance under fire exposure
- Support compliance with stricter façade fire regulations
Their use in rainscreen backing walls and external fire barriers is especially valuable in multi-storey buildings.
Certification and Documentation
Fire-rated wall assemblies must be supported by proper documentation, including:
- Fire test reports from accredited laboratories
- Classification reports defining fire resistance periods
- Declarations of Performance where applicable
- Installation guidelines aligned with the tested system
Specifiers should ensure that documentation refers to the complete wall assembly, not just individual components.
Common Specification Mistakes to Avoid
Some frequent errors can compromise fire compliance:
- Mixing products from different tested systems
- Changing insulation type without verification
- Using non-approved fixings
- Altering board thickness or layer count
- Ignoring joint and penetration detailing
Fire performance cannot be assumed — it must be demonstrated and documented.
Best Practices for Specifiers and Consultants
To ensure compliant fire-rated wall assemblies:
- Specify tested and certified systems only
- Follow manufacturer installation guidelines exactly
- Coordinate fire detailing early in the design stage
- Involve fire consultants for complex assemblies
- Document all deviations and approvals
Early coordination reduces risk during approval, construction, and future audits.
Conclusion
Fire-rated wall assemblies using fiber cement boards offer a robust, non-combustible, and regulation-ready solution for modern buildings. Their predictable behavior under fire exposure, combined with dimensional stability and durability, makes them a reliable choice for both internal and external fire-rated walls.
When designed and installed as part of tested systems, fiber cement boards help deliver compliance, safety, and long-term performance without introducing unnecessary risk.
