Architectural board / A1 non-combustible

Fiber cement performance across facade and interior systems.

A cement, cellulose and sand composite board for cladding, drywalls, ventilated façades, external walls and tile-backing applications.

Request pricingTechnical data
Fiber cement board for architectural facade and cladding applications
Product
Smartfiber
Composition
Composite panel made from cement, cellulose and sand.
Reaction to fire
A1 — non-combustible (EN 13501-1)
Thickness
6–20 mm across the listed standard options.

01 / Product overview

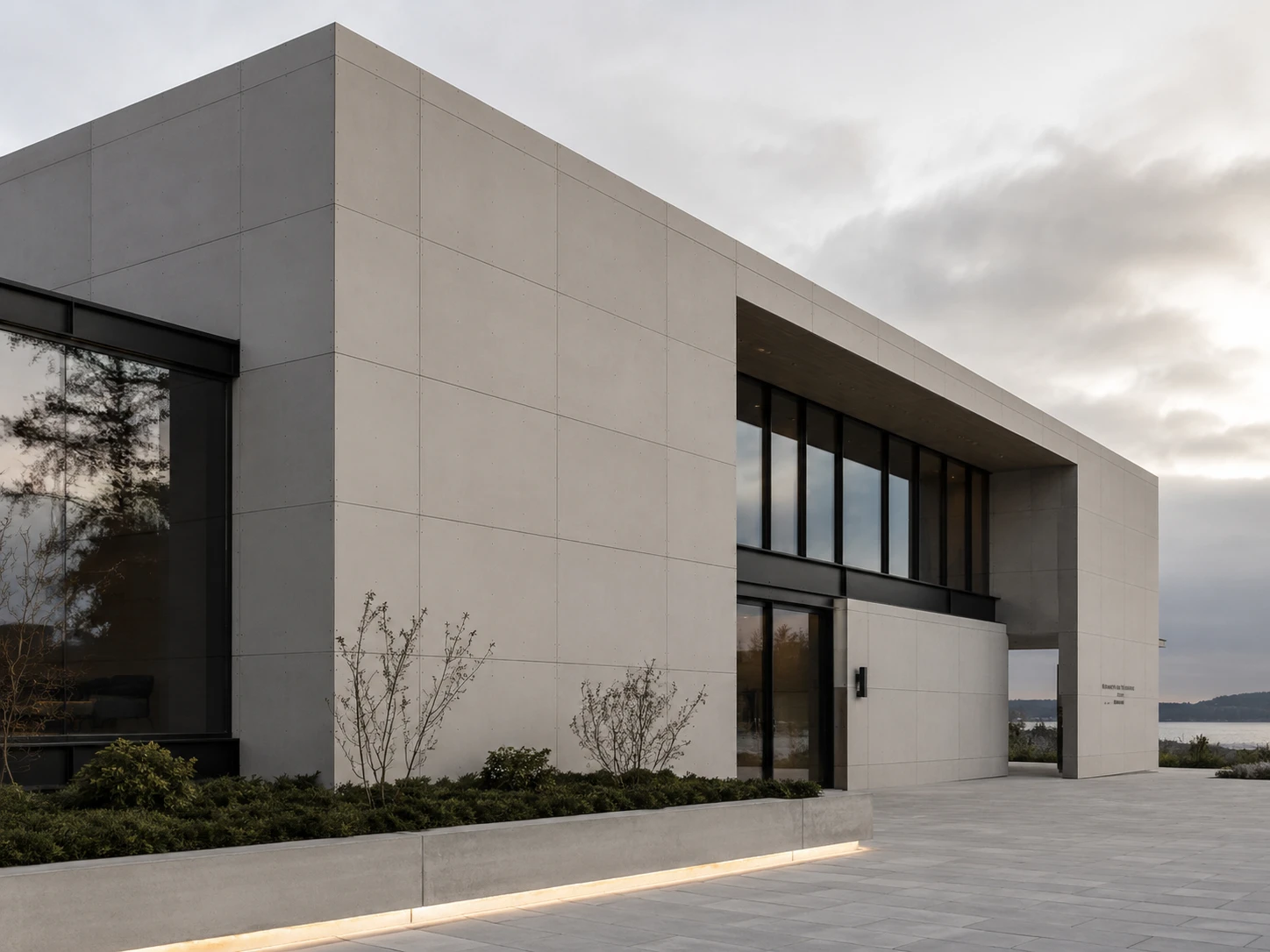

Contemporary Scandinavian building with fibre cement façade panels.

Smartfiber® Fiber Cement Board

Smartfiber® combines mineral durability with practical fabrication across regular, prefabricated, light-gauge steel and modular buildings. Its broad thickness and format range supports exterior envelope, interior lining and specialist substrate applications.

Request the latest technical documentation before final specification.

02 / Performance

Key advantages

01

Reaction to fire

A1 — non-combustible according to EN 13501-1.

02

Weather durability

Declared freeze/thaw and soak/dry durability: RL ≥ 0.75.

03

Moisture Resistant

Tested for water impermeability, with no water drops observed.

04

Thermal Performance

Declared thermal conductivity: 0.20 W/(m·K).

05

Versatile substrate

Can serve as a backer board beneath ceramic tiles.

06

Workable

Can be cut and mechanically fixed using appropriate tools.

07

Steel & Lightweight Systems

Suitable for prefabricated and steel-frame construction.

08

Wide format range

Listed in multiple widths, lengths and thicknesses for specification flexibility.

03 / Data

Technical specifications

Declared properties and standard formats.

Smartfiber® Fiber Cement Board declared performance
PropertyDeclared performanceReference / standard
Reaction to fireA1 — non-combustibleEN 13501-1
Type / category / classNT / Category A / Class 2EN 12467+A2:2018
Apparent density≥ 1.350 kg/m³EN 12467+A2:2018
Bending strength≥ 7 N/mm² Wet condition — Category A/BEN 12467+A2:2018
Elastic performance≥ 8.000 N/mm² — length
≥ 6.000 N/mm² — width		EN 12467+A2:2018
Water impermeabilityNo water drops observedEN 12467+A2:2018

Declared values are based on the manufacturer’s current Declaration of Performance and applicable test documentation. Project-specific suitability should be verified against the latest technical documentation before specification.

Additional technical data
Smartfiber® Fiber Cement Board additional technical data
PropertyDeclared performanceReference / standard
Thermal conductivity0.20 W/(m·K)EN 12467+A2:2018
Moisture movementMax. 0.20%EN 12467+A2:2018
Water vapour diffusion factorμ = 13.9EN 12467+A2:2018
Thermal expansion coefficient0.0049 mm/mKEN 12467+A2:2018
Warm-water durabilityRL ≥ 0.75EN 12467+A2:2018
Soak/dry durabilityRL ≥ 0.75EN 12467+A2:2018
Freeze/thaw durabilityRL ≥ 0.75EN 12467+A2:2018
Heat/rain exposureNo visible cracking, delamination, warping or sagging observedEN 12467+A2:2018

Dimensional tolerances

Smartfiber® Fiber Cement Board dimensional tolerances
PropertyDeclared performanceReference / standard
Thickness tolerance±10% of board thicknessEN 12467+A2:2018
Length tolerance±5 mmEN 12467+A2:2018
Width tolerance±3.75 mmEN 12467+A2:2018
Perpendicularity≤ 2 mm/mEN 12467+A2:2018
Dimensional toleranceLevel 1EN 12467+A2:2018
Smartfiber® Fiber Cement Board standard dimensions
PropertyDeclared valueReference / note
Thickness6, 8, 10, 12, 14, 16, 18, 20 mm—
Width1.200, 1.250 mm—
Length2.500, 2.800, 3.000 mm—

Availability can vary by order and destination. Confirm current formats, tolerances and minimum order quantities with Smartcon.

04 / Applications

Where the system works

Typical use areas listed by Smartcon. Final suitability depends on the complete assembly and project requirements.

  • Ventilated façade systems
  • Interior and exterior cladding
  • External wall sheathing
  • Drywall and partition systems
  • Tile-backer applications
  • Prefabricated, LGS and modular buildings
Fiber cement board for architectural facade and cladding applications

05 / Assurance

Standards and specification notes

Technical credibility depends on current documents and the performance of the complete installed system.

Reaction to fire

A1 — non-combustible according to EN 13501-1. This is the board’s reaction-to-fire classification, not a fire-resistance rating for a complete assembly.

Declared performance

EN 12467+A2:2018: Type NT, Category A, Class 2. Bending strength is declared as ≥ 7 N/mm² in wet condition for Category A/B.

Current documentation

Request the current Declaration of Performance and applicable conformity documentation before specification. Confirm the certification scope for the supplied thickness.

Document control

Request current product documentation

Use the document links to request current product documentation from Smartcon.
Technical data sheetE-catalogueGuide to fiber cement board selection

06 / Guidance

Frequently asked questions

01How should Smartfiber be painted?

Apply a compatible water-based acrylic paint after installation, following current board and coating-system guidance.

02How is Smartfiber installed?

The current page describes a supporting metal framework with boards screwed directly to it. Project-specific framing, fixings, joints and weather protection require the latest system documentation.

03How is the board cut?

The current guidance lists a diamond-headed spiral saw or a fiber cement knife. Use appropriate extraction and respiratory protection.

04How are joint gaps treated?

The current page refers to mastic or paste. Select a compatible joint treatment suited to movement, exposure and the final finish.
