Correct screw spacing and proper joint gaps are essential for the long-term performance of fiber cement façade systems. These details directly affect durability, stability, and surface appearance. When spacing is wrong, façades can crack, warp, rattle in wind, or allow water penetration.
This guide explains recommended screw spacing, edge distances, and expansion gaps — in clear, practical language suitable for engineers, architects, and installers.
Why Screw Spacing Matters
Fiber cement boards are rigid, dense materials. They need distributed mechanical fixing to:
- Prevent cracking under stress
- Avoid board flexing or vibration in wind
- Maintain a flat, stable surface over time
- Support loads evenly across the panel
- Allow controlled thermal and moisture movement
Incorrect spacing can lead to stress marks, bulging, and premature façade failure.

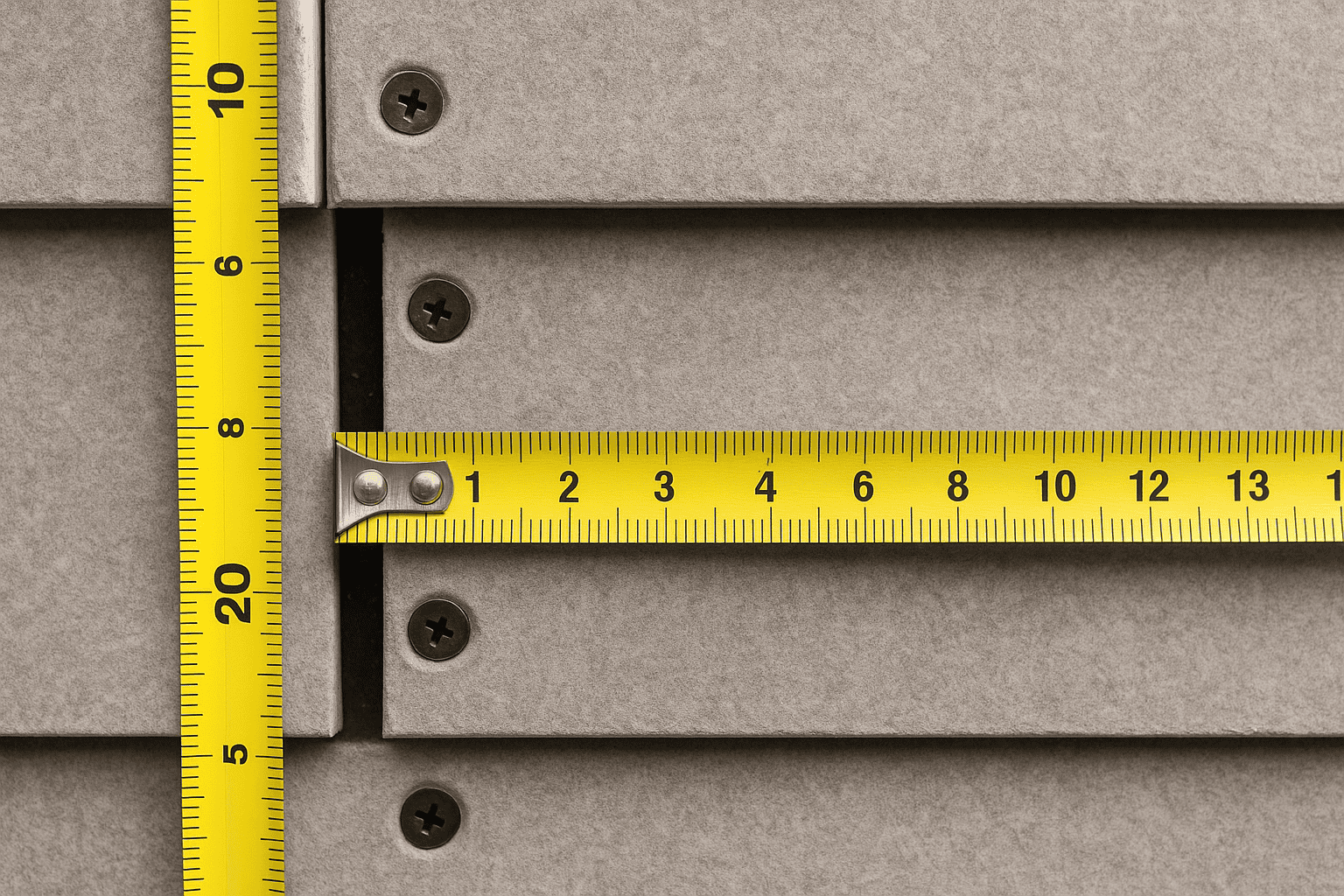

Recommended Screw Distances
- Horizontal spacing (between screws across the board)
Approximately 200 to 300 mm depending on wind exposure and board size. - Vertical spacing (between screw rows)
Approximately 400 to 600 mm depending on subframe design and load. - Edge distance
Screws should be placed about 20 to 30 mm from the panel edge. - Corner distance
Screws should be positioned roughly 40 to 50 mm from panel corners.
Fixing Technique and Screw Positioning
- Screws must be installed straight and perpendicular
- Screw heads must sit flush — not countersunk, not over-tightened
- Stainless steel screws are recommended for exterior applications
- Use self-drilling screws designed for fiber cement
Over-tightening creates micro-cracks around the screw head and weakens the board.
Expansion Joint Requirements
Fiber cement boards expand and contract slightly with temperature and humidity. To prevent stress-related cracking, always include movement gaps.
Between boards
Allow approximately 3 to 5 mm minimum gap.
For open-joint ventilated façades
Follow system specifications; gaps around 10 to 12 mm are common.
Gaps must be consistent, clean, and protected with backing tape if required by the façade system.
Special Considerations for Wind and High-Rise Buildings
High-rise façades and exposed coastal zones require more conservative design, which may include:
- Smaller screw spacing (closer fixtures)
- Verified stainless steel fasteners
- Stronger subframe reinforcement
- Manufacturer-approved fixing patterns
Always check wind load calculations and local building codes.
Common Mistakes to Avoid
- Screws placed too close to edges
- No movement gap between boards
- Irregular or random screw patterns
- Use of wrong screw type (e.g., wood screws)
- Over-tightening screws
- Failure to follow manufacturer fixing diagram
These errors often lead to cracks, uneven surfaces, and water issues.
Final Notes
Fiber cement façades perform exceptionally well when installed with the correct screw spacing and joint gaps. These small details ensure longevity, visual consistency, and structural safety.
Always follow:
- Manufacturer installation recommendations
- Subframe engineer specifications
- Wind zone design requirements
Proper planning and careful fixing protect your façade investment and deliver a high-quality finish.
