Avoiding Cracks, Breakage, and Long-Term Failures
Fiber cement boards are widely used in façades, exterior walls, soffits, and interior linings because of their non-combustibility, durability, and dimensional stability. However, even the best fiber cement board can fail prematurely if edge distances and fixing patterns are not applied correctly.
Cracking, edge breakage, screw pull-out, and surface damage are among the most common installation-related problems seen on site. In nearly all cases, these failures are not material defects — they are installation errors.
This guide explains how correct edge distances and fixing patterns protect fiber cement boards from damage, ensure long-term structural performance, and prevent costly remedial work.
Why Edge Distance Is Critical for Fiber Cement Boards
Fiber cement boards are rigid, cement-based products reinforced with fibers. Unlike timber-based panels or gypsum boards, they do not tolerate concentrated stress near edges or corners.
When screws are placed too close to the edge of a fiber cement board, stress builds up around the fixing point. Over time, this stress can lead to:
- Hairline cracks starting from the screw head
- Corner chipping during installation
- Progressive cracking caused by temperature changes
- Reduced load capacity around fasteners
Maintaining correct edge distance allows forces from fixing, wind load, and thermal movement to be distributed safely across the board surface.

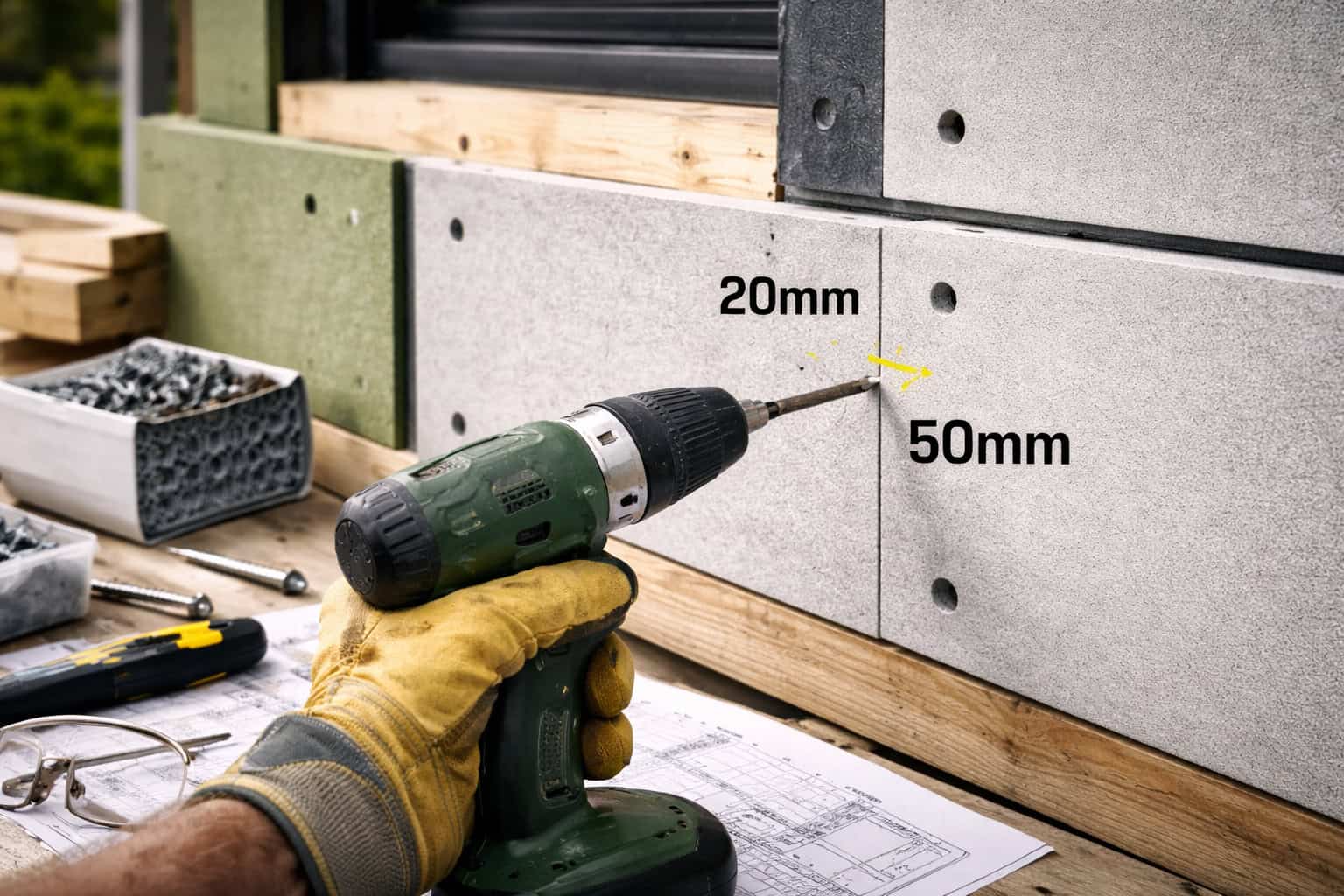

Minimum Edge Distance and Corner Fixing Principles
As a general rule, fixings should never be placed close to board edges or corners.
Screws must be positioned far enough from the edge to prevent splitting, and even further from corners, where stresses act in two directions. Corner fixings are especially sensitive and require careful positioning.
Ignoring these basic rules is one of the main reasons fiber cement boards crack shortly after installation.
Fixing Patterns and Load Distribution
Fixing patterns are not just about how many screws are used — they define how loads are transferred from the board into the supporting structure.
An incorrect fixing layout can cause:
- Uneven stress across the board
- Localized deformation
- Increased movement around fixings
- Long-term fatigue failure
Proper fixing patterns distribute loads evenly and allow the board to perform as designed under wind, temperature changes, and building movement.
Perimeter Fixings vs Field Fixings
Fiber cement boards experience higher stress along their edges than in the center. This is why fixings around the perimeter must be closer together than those in the central field of the board.
Edges are exposed to wind suction, thermal movement, and joint interaction. Reducing fixing spacing at the perimeter helps control movement and prevents edge cracking.
In contrast, the central area of the board experiences lower stress and can accommodate wider fixing spacing without compromising performance.
Importance of Symmetry and Alignment
Fixings should always be installed in straight, symmetrical lines. Random or uneven screw placement creates stress concentrations and increases the risk of cracking.
A consistent fixing grid improves both structural performance and visual appearance. It also makes future inspection and maintenance easier.
Board Thickness Does Not Eliminate Edge Distance Requirements
Thicker fiber cement boards are stronger, but thickness does not replace correct fixing practice.
Even thick boards can crack if screws are placed too close to edges or corners. Edge distance rules must always be respected regardless of board thickness.
Timber Framing vs Steel Framing Considerations
When fixing to timber framing, natural movement caused by moisture and temperature must be considered. Pre-drilling is often recommended near edges to reduce stress during screw insertion.
Steel framing is more rigid, which means stress is transferred directly into the board. This makes correct edge distance and controlled screw tightening even more important.
In both cases, incorrect fixing positions will eventually lead to damage.
Pre-Drilling: A Simple Step That Prevents Cracking
Pre-drilling holes near edges and corners significantly reduces the risk of cracking. It allows the screw to pass through the board without forcing the material apart.
Pre-drilled holes should be slightly larger than the screw shank to allow controlled movement without compromising fixing strength.
Skipping pre-drilling is one of the most common causes of installation-related failures.
Over-Tightening Screws: A Hidden Cause of Damage
Over-tightening screws can crush the board surface and introduce micro-cracks around the fixing point. These cracks may not be visible immediately but can expand over time due to temperature changes and vibration.
Screws should be tightened until the head sits flush with the surface — never forced into the board.
Expansion, Movement, and Fixing Strategy
Fiber cement boards expand and contract slightly with temperature and humidity changes. Fixing patterns must work together with:
- Expansion gaps between boards
- Control joints at defined intervals
- Proper joint detailing
If movement is restrained by incorrect fixing, stress will concentrate around screw heads and edges, leading to cracking.
Long-Term Performance Depends on Installation Accuracy
Many fiber cement board failures appear months or even years after installation. These delayed failures are usually caused by:
- Thermal cycling
- Wind load fatigue
- Gradual moisture-related movement
Correct edge distances and fixing patterns prevent these issues before they develop.
Best Practice Summary (Without Shortcuts)
To avoid cracks and failures:
- Never place fixings too close to board edges
- Keep screws well away from corners
- Use consistent, symmetrical fixing layouts
- Reduce spacing along board perimeters
- Pre-drill near edges and corners
- Avoid over-tightening screws
Attention to these details determines whether a fiber cement installation lasts a few years or several decades.
Conclusion
Edge distance and fixing patterns are fundamental to the success of any fiber cement board installation. When applied correctly, fiber cement boards deliver exceptional durability, fire safety, and long-term reliability. When ignored, even premium boards can fail prematurely.
For architects, contractors, and installers, respecting fixing principles is not optional — it is essential for compliance, performance, and reputation.
